特點:垂直半回轉大型擺梭,同時能進行嵌線裝飾縫制,標準規格為平壓腳。(也提供滾輪壓腳)裝飾縫時,提供針?lè)杂烧{(diào)整的新型滾輪壓腳和機針夾具。適用于皮革、合成革、布料、化纖等各種中厚料及厚料,適用于縫制皮革制品、鞋、靴的裝飾縫、箱包、手袋等產品。

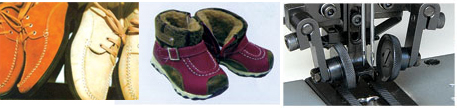

Characteristics:Vertical semi-rotary large shuttle,It could sewing in welt decorating stitches at the same time The standard specification is flat presser.(The roller presser also provided) New roller presser with automatic adjusting needle gauge and needle clamp are provided to decorating sewing.It is suitable for various medium and thick material and thick material, such as leather, synthetic leather, cloth and chemical fiber.It is suitable for decorating sewing of leather products,shoes and boots and suitcase and handbag etc.
主要技術參數Main Parameters:
針數 Needle |
2針 Needle |
縫速高達 Max.Sewing speed |
800針/分 needles/min |
針距大 Max stitch |
8毫米 mm |
壓腳提升 Presser food lift |
手提 By hand |
10毫米 mm |
膝控 By knee |
15毫米 mm |
針桿行程 Needle bar stroke |
50毫米 mm |
潤滑方式 Lubrication |
手工潤滑 Manual |
作業空間 Operating room |
310×185毫米 mm |
電機 Motor |
離合器電機(500W,1400轉/分)Clutch electrical engineering(550W 1400r.p.m) |
機頭重量 machine head weight |
48KG kg |
